1/2" Flex cable Female din Connector

Place of Origin : DONGGUAN

Brand Name : J&L

MOQ : 1000pcs

Packaging Details : PE bag, Carton package

Delivery Time : 7-15 days

Payment Terms : T/T, Western union, PayPal

Certification : ROHS ,CE.UL

Model Number : DF 1/2 LCF

Price : Negotiated

Supply Ability : 1000000pcs/M

Type : DIN

Application : RF

Gender : Female

Contact Now

1/2" Flex cable Female din Connector

Interface : Female

Brand : J&L

Connector Impedance : 50 ohm

Cable Impedance : 50 ohm

RF Operating Voltage , maximum(vrms) :707 V

DC Test Voltage : 2000V

Outer Contact Resistance , maximum : 0.3 mOhm

Inner Contact Resistance , maximum : 2 mOhm

Insulation Resistance , minimum : 5000 mOhm

Average Power : 0.6 kW @ 900 MHz

Peak Power , maximum : 10 kW

Insertion Loss , typical : 0.08 Db

VSWR Straight : 1.163(0.8-2.5GHz)

Shielding Effectivenss : 110Db

Outer Contact Attachment Method : Selfflare

Inner Contact Attachment Method : Push fit

Outer Contact Plating : Trimetal /Cu Sn Zn

Inner Contact Plating: Silver

Insulation : PTFE

O-ring : Silicone Rubber

Attachment Durability : 25cycles

Interface Durability : 500cycles

Interface Durability Method : IEC 6116916: 9.5

Connector Retention Tensile Force : 890 N /200

Connector Retention Torque : 5.42 Nm/48.00 in 1B

Pressurizable : No

1/2" Flex cable Female din Connector

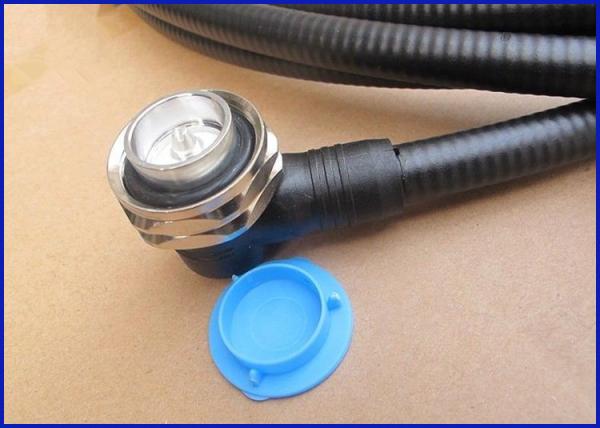

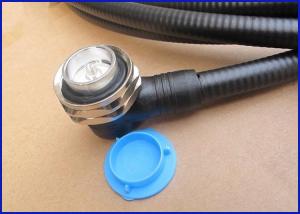

1/2" Flex cable Female din Connector Images
